Description
Comments
Material

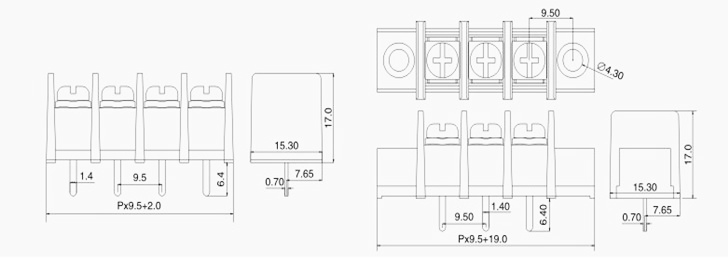

Pitch:9.5mm
Poles:2P to 30P
Screws:M3 Ni-plated
Terminal: Brazz 0.8t Tin Plated
Housing: PA66 UL94V-0
Capability
Rated Voltage:300V
Reted Current:20A
Insulation Resistance: 500M Ohm/500V
Withstanding Voltage:AC2000V/1Min
Wire Range:24-14 AWG
Max.Torque Value:8kg.cm
