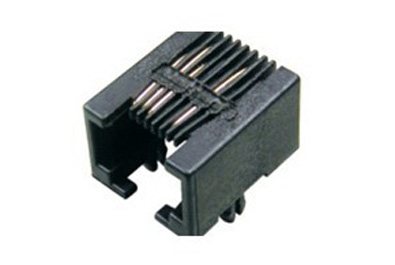

rj45 side entry modular jack Description
5321 series-gold wire exposed-8P4C
Electric Performance
Rated current: 1. 5A MPS
Rated voltage: 125V AC
Contact resistance: The contact resistance during the contact of gold wire in PCB plug is less than 20m OHM, after test less than100mOHM
Insulation resistance: Hi-Pi-Test more than 500M OHM
Testing conditions: AC 100V 50Hz & 60Hz 1Min
Mechanucal Performance
Matching ability with plugs: (Plug gold wire number / Matching ability) 2C/350G, 4C/500G, 6C/750G, 8C/900G, 10C/ 1050G
Fixed performance: PC plug should bear 10N pulling force without breaking away from PCB plug
Usage life Under normal conditions of usage more than 750 times
Materials
Synthetic performance:
A. Glass fiber filler NYLON66 (UL94V-0) (main materials)
B. Glass fiber filler PBT (UL94V-0)
C. ABS RESIN (UL94V-0) (selective material)
Plastic core: Glass fiber filler PBT (UL94V-0)
Cover: 0. 25tick copper alloy painted with tin and nickel
Contact gold pin:
A. Phosphor copper wire with diameter of 0. 46mm painted with nickel and then gold
B. Phosphor copper wire with diameter of 0. 35mm painted with nickel and then gold
Optional gilded thickness: 1. 8uInch, 3uInch, 6uInch, 15uInch, 30uInch, 50uInch
