Description
Comments
Material

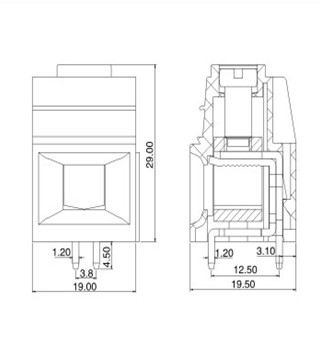

Pitch:19mm
Poles:2P or xxP
Screws:M5 Steel Zinc Platedor Brass
Contact:Steelzinc Platedor Brass Ni Plated
Pin Header: Brazz Tin Plated
Housing: PA66 UL94V-0
Electrical:
Rated Voltage:600V
Reted Current:100A
Contact resisitance: 20M Ohm
Insulation Resistance: 500M Ohm/1000V
Withstanding Voltage:AC3500V/1Min
Wire Range:24-3AWG
Mechanical:
Temp.Range:-40~105 degrees
MAX soldering: 250 degrees for 5 sec
Torgue:0.4Nm(3.6lb.in)
Strip Length:10-12mm
