Description
Comments

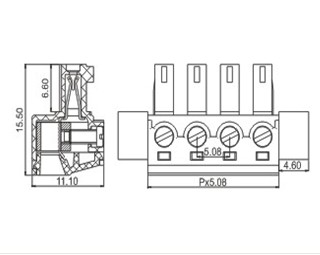

Pitch:5.08mm
Poles:from 2P to 24P
Screws:M2 Steel Zinc Platedor Brass
Contact:Steelzinc Platedor Brass Ni Plated
Pin Header: Brazz Tin Plated
Housing: PA66 UL94V-0
Electrical:
Rated Voltage:300V
Reted Current:8A
Contact resisitance: 20M Ohm
Insulation Resistance: 500M Ohm/1000V
Withstanding Voltage:AC5500V/1Min
Wire range:AWG28-16
Mechanical:
Temp.Range:-40~105 degrees
MAX soldering: 250 degrees for 5 sec
Strip Length: 5-6mm
