Specifications

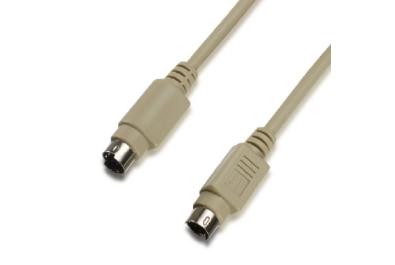

S-Video Cable,MD4 Male to MD4 male
Goldplated connectors and assembly metal
Rohs Compliant
S-Video Cable
MD4 Male to MD4 Male
Goldplated connectors and assembly metal
Rohs Compliant
Feature:
1. Cable: NON-UL 28#4C+1 OD=5.0mm
2. Connector: goldplated, nickle plated for optional
3. Molding: Single color molded, double color molded, assembly for optional
4. Length: 1m, 3m, 5m, as customers requirements
5. Rohs Compliant
6. Packing: PE Bag, OPP Bag, Blister card, Color box
S-Video is separate video, also called Y/C, is an analog video signal that carries video data as two separate signals: luma(luminance) and chroma(color).
It will separate the output of luminance and chroma to avoid the mutual interference for the mixed video signal output. S-Video is actually a five-pin interface, composed by two-way luminance signal, two-way video chroma signal and one-way public shielding ground.
Compared with the AV interface, as it is no longer to put up Y / C mixed transmission, it has no need for luminance and chroma separation and decoding, so the clarity of the image are greatly improved.
