Product Description :

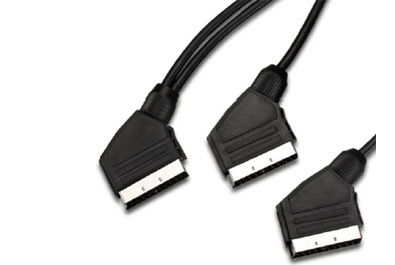

1. Scart 21pin to 2 x scart 21pin

2. OD:7.0mm

3.full metal shell type / pvc shell type scart cable

4.High grip scart connector, no more plugs falling out of the socket;

5.High pure copper conductor / high-grade oxygen free copper conductor /Copper Clad Aluminum(CCA)/Copper Clad Steel(CCS)

6.24k gold-plated /nickel connectors

7.ROHS , PAHS , LSZH

Specifications :

1. male to male connectors or male to female connectors (optional )

2.With nylon protection layer protect cable from abrasion (optional )

3. All materials conform to ROHS standard of Europe

4. OEM design logo available

5. outer diameter : optional

6.shielding : Standard ,tri-shield ,drop cable

7. Braiding material: copper ,Tin copper or CCS, according to the clients’ requirements

8.Jacket: Flame retardant , durable and highly flexible PVC outer jacket , according to the clients’ requirement

9. Color and length : according to the clients’ requirements.

10.Technology process: Cutting, Crimping, Welding, Assembly and Testing

11).Suitable for all SCART-SCART connections, including composite, S-VHS and RGB.

Electrical :

1.100% open&short test

2.insulation resistance : 10mΩ min / DC300V

3.contact resistance: 3 ohm max / DC300V

4.working temperature : -25C-80C

What is Scart: Scart Video Cable is a perfect solution for those who want to get the best audio and video quality signal when connecting video devices that use Scart Connection to Video Displays that also use Scart connection. This cable is able to pass Audio and Video Signal of all types that Scart connection can support. All of the 21-pins are connected.

Scart connector is a type of a connection between two video sources. Scart can carry audio and video signal (stereo, composite video, s-video, component video and RGB). This type of a connection is mainly used in Europe and Asia.

Exclusively for our European customers our top end, SCART (male) to SCART ( male), triple shielded cable with Gold connectors. Made of pure Oxygen Free Copper (OFC) conductor, it has the characteristics of high conductivity, low signal loss and degradation, low electric resistance and good signal transmission. Triple shielded construction will reduce EM and RF interference to a minimum, while gold connectors will keep a perfectly tight connection. Whether you are running HD (High Definition) signal or SD (Standard Definition) signal, this cable is perfectly compatible to either one. It would transfer Video Audio on either type of the signal.
