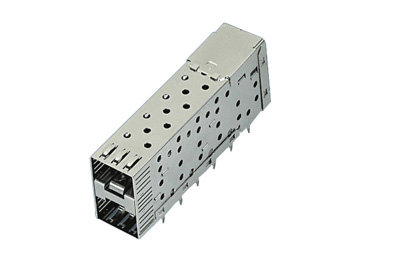

Small Form-factor Pluggable(SFP) System-Stacked( Dual Row ) 2X1 SFP Cage -A
The Stacked SFP configuration allows original equipment manufacturers and designers
ability to maximize port density by decreasing the horizontal port spacing from 16.25m the original
SFP MSA, to 14.25mm allowing a common wall to support two side by side
1, Minimzing height port spacing. 2, Decreasing horizontal port spacing.WISDOM Electronics supports
2x1, 2x4, 2x6 and 2x8 configurations.
Product Facts:
RoHS Compliant
Utillizes fully integrated stacked connector
Offers full metal housing for superior grounding and EMI suppression
Incorporates press fit eye-of-the-needle contacts for both mechanical cages and eletric connector
Connector contact 15um gold plating w/contact surface treatment
Hot Swappable
Connector supports data rates beyond 10Gb/s
